Description

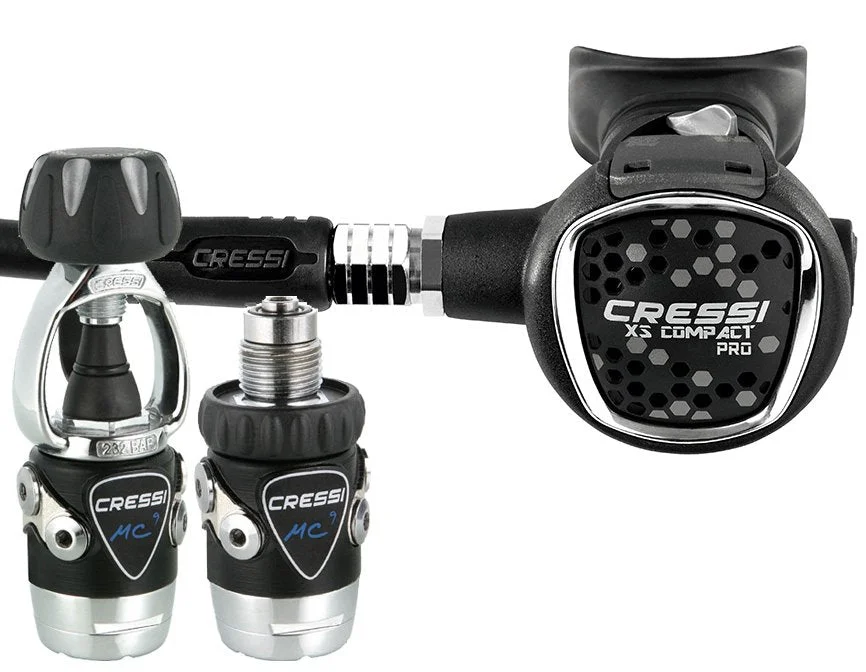

Regulator designed especially for cold water. Combines a balanced diaphragm first stage with an SC cold water system with a sealed chamber and a light and compact second stage, that is a high performer in waters colder than 10°C. This premiere travel regulator packs maximum performance into minimum space. A true featherweight second stage, the Compact is built from lightweight techno-polymers to eliminate jaw fatigue. Easy to pack and easy to dive, the Compact includes dive/pre-dive Venturi switch for managing freeflow and maximizing performance at depth.
MC9-SEAL CHAMBER 1ST stage The MC9-SEAL CHAMBER 1ST stage is environmentally sealed, protecting it against icing in cold water and against contamination from particulate matter in silty conditions.
TOTAL WEIGHT XS COMPACT PRO MC9-SC INT hose included: 943 gr XS COMPACT PRO MC9-SC DIN hose included: 803 gr
TECHNICAL FEATURES 1ST STAGE – Balanced diaphragm (seal chamber for MC9SC) – 2 outlets HP 7/16 UNF – 4 outlets MP 3/8 UNF – Service pressure: 300 bar (4350 psi) DIN version, 232 bar (3365 psi) Yoke version – Calibration pressure: 10 Bar – Brass body Electroless Nickel plated – High capacity conical filter electroless nickel plated – Aisi 316 removable nozzle – Hyper-balancing – Anti-pressure drop pneumatic spring – Setting spring: stainless steel with micropeening treatment – Replaceable cylinder with anti-friction and anti-corrosion properties – Elastomer protector – Flow rate: 4500 l/min – Yoke version weight: 650 gr- Din version weight: 510 gr
TECHNICAL FEATURES 2ND STAGE – Downstream system – Adjustable venturi effect – Patented antifriction lever- Patented sealing washer – Big purge button – Anti-scratch surface – Bayonet-type cap holder with security lock – Stainless steel cover – Removable exhaust tee without tools – Weight without hose: 140 gr
COMBINATION PERFORMANCE – Average Cracking effort 7.5 mbar- Average breathing effort 1.2 J/l
JACKETED HOSE extremely light and flexible weight: 153 gr
CERTIFICATION EN250/2000 for cold water
